How quickly does an insulation mattress pay for itself?

Every day, heat is lost unnoticed in technical installations. Uninsulated valves, flanges, pumps, and pipes continuously radiate energy into the environment. This costs money, increases energy consumption, and leads to unnecessary CO2 emissions. Our insulation jackets offer a simple and effective solution, often paying for themselves within one to a maximum of two years.

How an Insulation Jacket Saves Energy

An insulation jacket is a custom-made, flexible cover that drastically reduces heat loss. According to industry publications and studies, a single uninsulated valve loses an average of 800 to 1,000 watts of heat per hour. This is comparable to the loss from approximately 1.5 meters of uninsulated piping with a medium at 180°C. With a well-fitting insulation jacket, this loss is reduced by up to 85%.

The result: less heating required to maintain the same temperature, lower energy costs, and a smaller CO2 footprint.

Insulation Jackets Often Pay for Themselves Within 2 Years

An investment in a thermal insulation jacket pays off very quickly. At Econtras, the payback period is often between 6 months and 2 years.

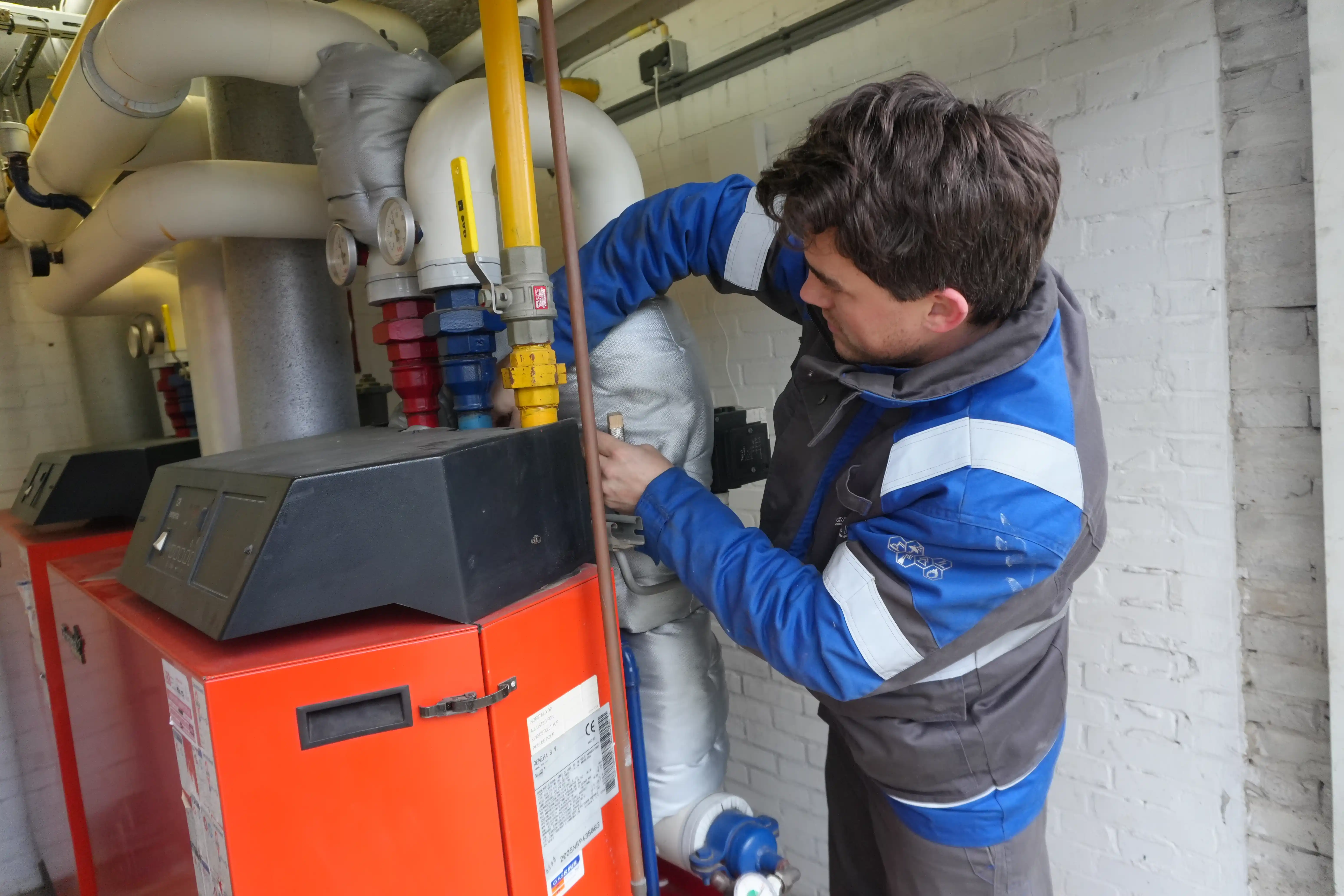

A practical example: In a boiler room in Rotterdam, pipes, valves, and pumps were fitted with Econtras insulation jackets. The result was an annual saving of 13,511 kWh of heat, equivalent to around €970 per year. The investment was earned back in just 10 months.

Different Types of Insulation Jackets

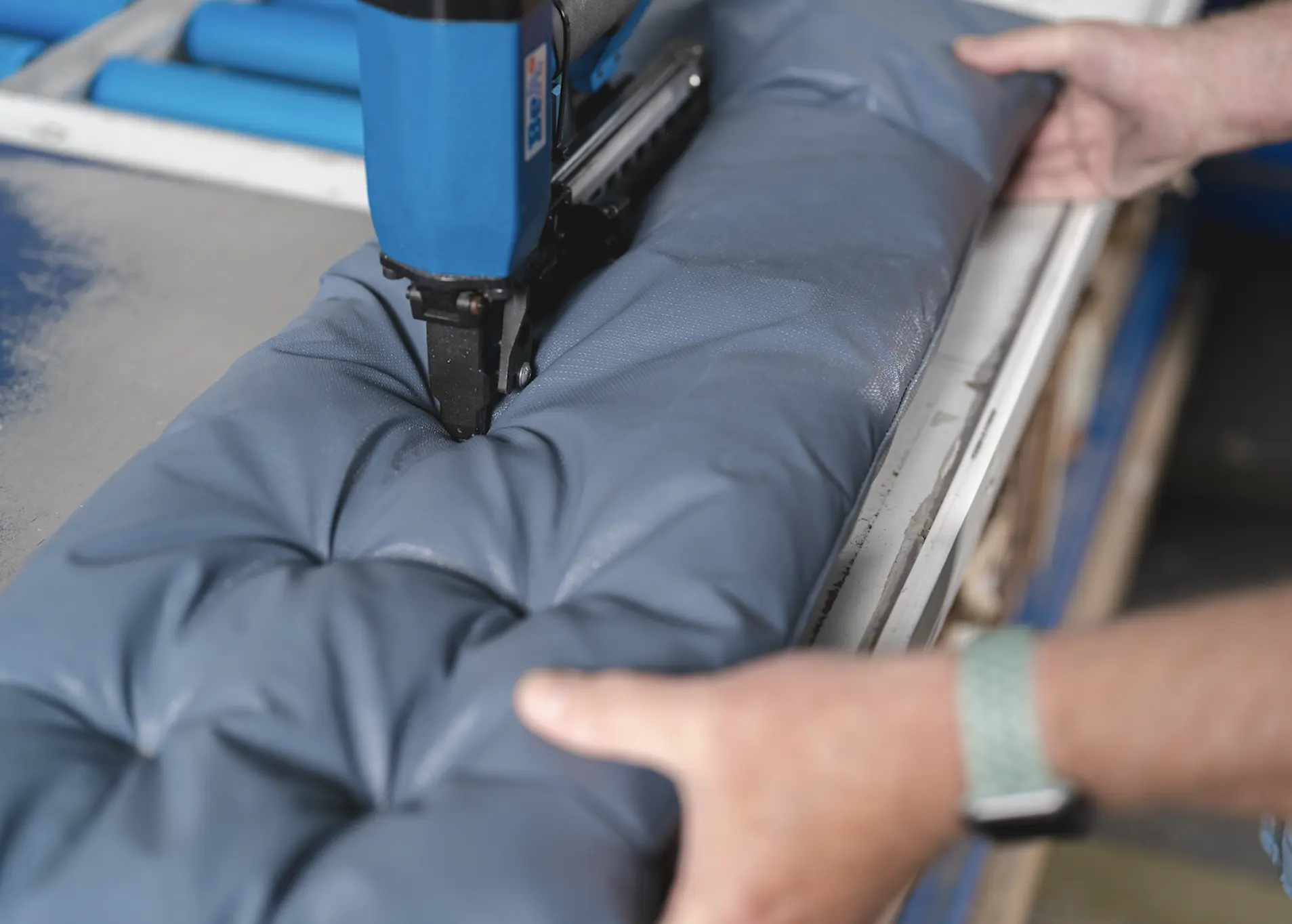

In simple terms, an insulation jacket is a thick, flexible, custom-made cover filled with insulation material. You place it around components of an installation, such as valves or pipes, to limit heat or cold loss. The jacket is custom-made to ensure a perfect fit and is easy to remove for maintenance.

Econtras produces insulation jackets for a wide range of applications, each with its own specific benefits:

• Thermal insulation jackets – specially developed for maximum heat savings and energy reduction. They are frequently applied to hot pipes, steam valves, and heat exchangers, where they can prevent up to 85% of heat loss. This saves directly on energy costs and contributes to CO2 reduction.

• Acoustic insulation jackets – made to reduce noise pollution. These jackets contain sound-dampening layers that absorb vibrations and noise, significantly lowering the decibel levels around machines and piping. They are often combined with thermal properties for a dual benefit.

• Passive Fire Protection (PFP) – designed for passive fire protection. These jackets consist of heat-resistant materials that protect equipment during a fire, allowing processes to be shut down safely and ensuring legal requirements are met.

• Cryogenic and cold insulation – suitable for installations that need to retain cold temperatures, such as refrigerated piping or cryogenic tanks. They prevent condensation and energy loss, while protecting against corrosion under insulation (CUI).

• Antistatic versions – developed for use in explosive atmospheres (ATEX zones). These jackets prevent the buildup of static electricity and the subsequent risk of sparks, while simultaneously providing thermal insulation.

For direct energy savings, the thermal insulation jacket is the best choice, optionally combined with additional properties such as sound attenuation or fire resistance.

More Than Just Savings

Aside from energy savings, insulation jackets offer additional advantages that make their practical use even more appealing:

• Safety: Because the outside remains much cooler, there is no risk of burns upon contact. This improves workplace safety and prevents accidents.

• Ease of maintenance: The jackets are designed to be removed and replaced quickly without special tools, meaning maintenance work takes less time and installations are back operational faster.

• Durability: By limiting energy consumption and protecting installations against temperature fluctuations, they extend the lifespan of equipment and lower the overall environmental impact.

Our solutions also help companies comply with statutory energy-saving obligations.

Would you like to know immediately what we can do for your specific situation? Contact us today or request a consultation, and we will calculate exactly when your investment will be earned back.
